How to Adjust the TSX FPC 10 ISA Card Parameters

At a Glance

Before installing the TSX FPC 10 card, you must adjust the following parameters:

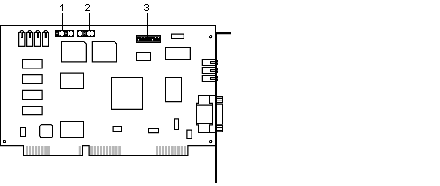

Illustration

This card comprises the following elements:

Numbers and Elements

The following table describes the different parameters to be adjusted:

Number	Element
1	Jumpers (SW1) are used to select the DMA channel (Direct Memory Access) (no object).
2	A jumper (SW2) is used to select the IRQ (Interrupt Request) level.
3	The micro-switches (SW3) are used to select the standard address of the card in the I/O space.

Procedure

To adjust the parameters, proceed in the following manner:

Step	Action
1	Set the IRQ interrupt jumper to comply with the address provided by the or Vista/XP operating systems.
2	Code the standard I/O address provided by the operating system or Vista/XP with the micro-switches.

Example of IRQ Selection

The interrupt address provided by the system is 10:

NOTE: The jumper must not be set in the IRQ position.

Example of Standard Address Selection

The standard address provided by the system is equal to 210 in hexadecimal:
