How to Configure Hardware Parameters
|
|
|
(Original Document)
|
|
Step
|
Action
|
|---|---|
|
1
|

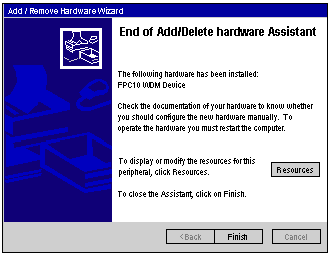

Click on the Resources button.
|
|
2
|
Click on Manual Configuration.
Result
The following window appears:
 |
|
3
|
Select Input/Output Range from the list.
|
|
4
|
Verify the box Use automatic settings is not checked.
|
|
5
|
Click on Change settings.
Result
The following window appears:
 |
|
6
|
From the Value list, select the non-conflicting address range.
Note: note the values because they must be coded onto the ISA card.
|
|
7
|
Confirm with OK.
Result: a confirmation window appears.
|
|
8
|
Confirm with Yes.
|
|
9
|
Carry out steps 3 to 8 selecting Interrupt Request from the list.
|
|
10
|
Accept the configuration with OK.
Result
The following window appears:
 |
|
11
|
Click on Finish to confirm hardware configuration.
|
