Driver configuration screen
(Original Document)
About us
At a Glance
The configuration tool is used to configure the driver in Fipway or Fipio mode to use a ISA TSX FPC 10 card on Fipway/Fipio network.
The configuration tool can be accessed from the taskbar Start → Settings → Control Panel → Driver Manager.
Select the tab corresponding to the driver to be configured, then click [FIP01]/[FIP02] Properties.
Illustration

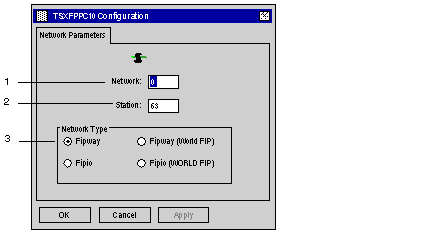

The screen dedicated to the card driver looks like this:
Description
This table describes the different areas which make up the configuration screen:
Number
Element
1
This field is used to set the network address.
2
This field is used to set the station address.
3
This window is used to select the type of Fipway or Fipio connection.
