How to Add a Device on the Bus
|
|
|
(Original Document)
|
|
Step
|
Action
|
|---|---|
|
1
|
Access the CANopen configuration screen.
|
|
2
|
Double-click on the place where the module should be connected.

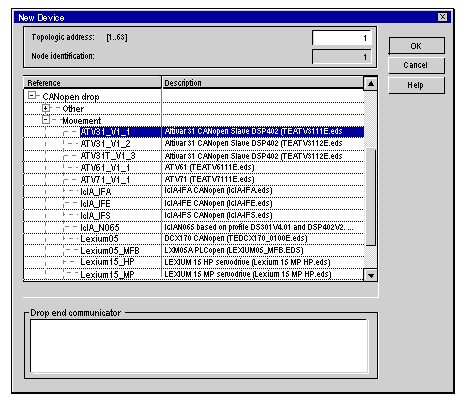

Result: the New Device screen appears.
 |
|
3
|
Enter the number of the connection point corresponding to the address.
By default, the Control Expert software offers the first free consecutive address.
|
|
4
|
In the Communicator field, select the element type enabling communication on the CANopen bus.
For modules with built-in communicators, this window does not appear.
|
|
5
|
Validate with Ok.

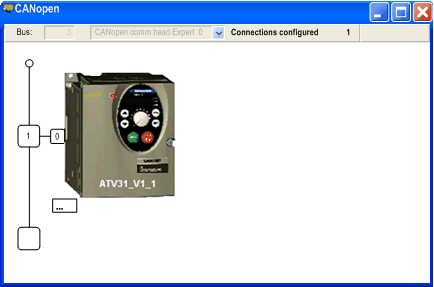

Result: the module is declared.
 |
