Declaration of Nodes 2 and 3
|
|
|
(Original Document)
|
|
Declaration of Nodes 2 and 3
|
|
|
(Original Document)
|
|
Step
|
Action
|
|---|---|
|
1
|
Select the command Insert → Node.
Result: a cursor appears:
|
|
2
|
Place the cursor on the bus outside of the text frame that defines the master and click once.

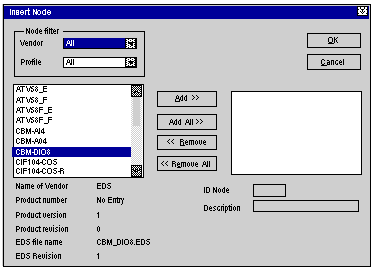

Result: the following screen appears:
 |
|
3
|
Select Node_2 in the list of available devices.
|
|
4
|
Click on the Add button to insert Node_2 in the list of devices selected.
|
|
5
|
Select Node_3 in the list of available devices.
|
|
6
|
Click on the Add button to insert Node_3 in the list of devices selected and confirm with OK.

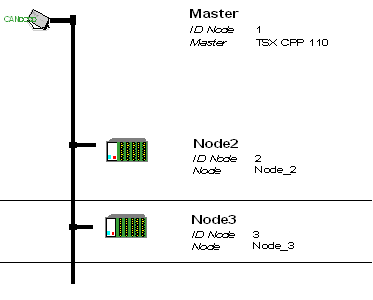

Result: the following structure appears:
 |
