Physical description of the TSX SUP A05 power supply block
(Original Document)
About us
Illustration

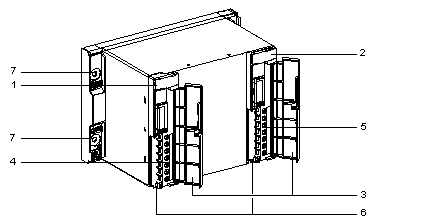

Numbered diagram:
Reference table
The following table provides descriptions for each of the numbers on the above diagram:
Numbers
Description
1
Display panel with an ON LED (orange): lit when the power supply is switched on.
2
Display panel with:
  • a 24V LED (green): lit when the 24V DC output voltage is present and correct,
  • an AS-i LED (green): lit when the 30V DC output voltage is present and correct,
3
Protective flaps for terminal blocks.
4
Screw terminal block for connecting to the AC power supply network.
5
Screw terminal block for connecting the AS-i 24V DC and 30V DC outputs.
6
Hole for threading of cable tie.
7
Four screw holes for M6 screws.
