How to Define a New Slave Profile in a Private AS-i Catalog
(Original Document)
About us
At a Glance
The Control Expert software offers the possibility of defining a slave profile that is not provided in the standard catalog.
The new profile thus defined is added to the catalog in Private family.
This profile can then be used as a standard catalog profile.
NOTE: A profile cannot be deleted, only their name and comment can be changed.
A profile created and added in the catalog is closely linked to the PC on which it was created, and to the programming software. A project converted using Control Expert or opened on another PC that does not have the same catalog will not display the profile’s name and comment.
Procedure
The following table presents the procedure for defining a slave profile, which is not provided in the standard catalog.
Step
Action
1
Access the AS-i module’s hardware configuration screen.
2
Double click in a slave’s host cell (1 to 31).
Result: the Associate Profile screen appears.
3

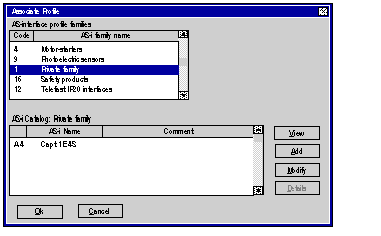

Select Private family in the AS-i family name field.
Result: the AS-i catalog linked to the selected family appears.
4
Click on the button Add.

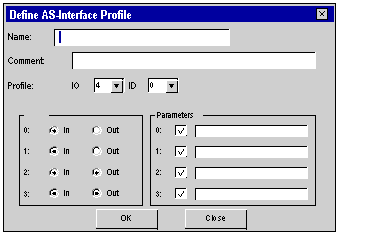

Result: the Define AS-Interface Profile window appears.
5
Enter:
  • The name of the new profile,
  • A comment (optional).
6
Select:
  • The IO code (corresponds to the input/output configuration),
  • The ID code (identifier).
7
For each parameter, define:
  • The system’s acknowledgement (box checked),
  • A label (optional).
8
Confirm the introduction of a new profile by clicking OK.
