The TSX ASY 800 output module consists of a 25 pin Sub-D connector and an external supply terminal block.

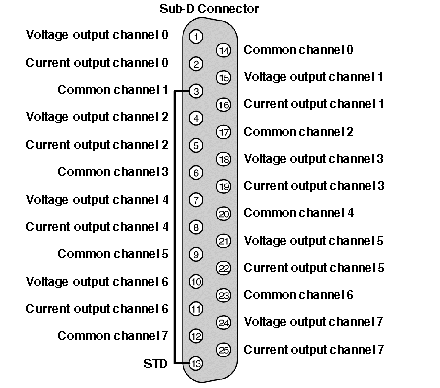

The Sub-D connection is shown below:
STD: The "strap" between pins 3 and 13 detects disconnection.
External Supply Terminal Block
The connection of the external supply terminal block is shown below:
Some recommendations:
-
External supply must be of the type VLVS (very low voltage for safety) 24 V +/- 5 %, ripple < 1 V.
-
The connection lead must be a shielded cable (it is advised to connect the shielding braid on the supply side and as close as possible to the module, using ground clips).
Supplies that are suitable: TSX SUP 1011/1021/1051/1101 and TSX SUP A05.
