TELEFAST 2 Pin Assignment for the TSX ASY 800 Module
(Original Document)
About us
At a Glance

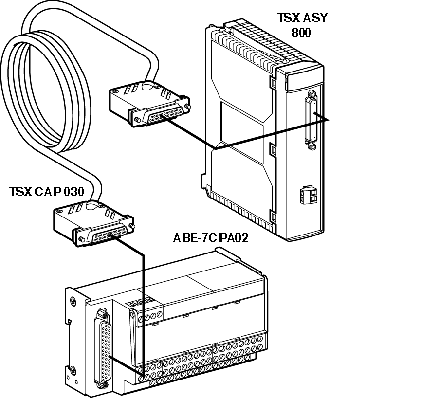

Connecting the analog module TSX ASY 800 to a TELEFAST 2 ABE-7CPA02 is done using the cable TSX CAP 030, which guarantees shield continuity. This accessory is a connection base for the connection of current and voltage outputs to a screw terminal block.
ABE-7CPA02
The distribution of the analog channels to the terminals of the TELEFAST 2 ABE-7CPA02 is as follows:
TELEFAST 2 terminal number
Nature of the signals
TELEFAST 2 terminal number
Nature of the signals
1
Ground
Supply 1
Ground
2
STD (1)
Supply 2
Ground
3
STD (1)
Supply 3
Ground
4
STD (2)
Supply 4
Ground
100
Output voltage 0
200
Common channel 0
101
Current output 0
201
Ground
102
Voltage output 1
202
Common channel 1
103
Current output 1
203
Ground
104
Voltage output 2
204
Common channel 2
105
Current output 2
205
Ground
106
Voltage output 3
206
Common channel 3
107
Current output 3
207
Ground
108
Voltage output 4
208
Common channel 4
109
Current output 4
209
Ground
110
Voltage channel 5
210
Common channel 5
111
Current channel 5
211
Ground
112
Voltage output 6
212
Common channel 6
113
Current channel 6
213
Ground
114
Voltage channel 7
214
Common channel 7
115
Current channel 7
215
Ground
NOTE: Disconnections are detected by a link via a "strap" between terminals STD (1) and STD (2).
