The module TSX ASY 410 is connected using the screw terminal block TSX BLY 01.

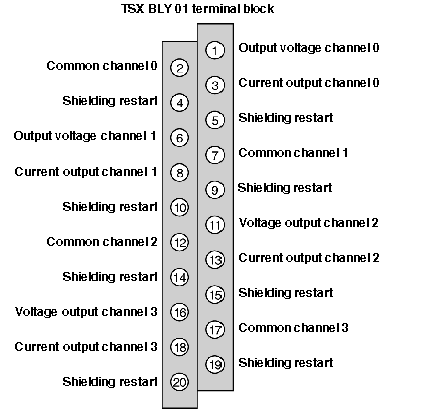

The connections of the TSX BLY 01 screw terminal block are shown below:
NOTE: Shielded cables should be used and their shields should be linked to the terminals provided for this (Restart shielding).
