TELEFAST 2 Pin Assignment for the TSX ASY 410 Module
(Original Document)
About us
At a Glance
The TSX ASY 410 analog module is connected to a TELEFAST 2 accessory using the TSX ABF-Y25S••• cable, which guarantees continuous shielding. The accessory ABE-7CPA21 is a connection base for connecting 4-channel analog modules to a screw connector terminal block
ABE-7CPA21
The distribution of analog channels on TELEFAST 2 terminal blocks with the reference ABE-7CPA21 is as follows:
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
1
/
Ground
Supp 1
/
Ground
2
/
STD (1)
Supp 2
/
Ground
3
/
STD (1)
Supp 3
/
Ground
4
/
STD (2)
Supp 4
/
Ground
100
1
Voltage output 0
200
14
Common channel 0
101
2
Current output 0
201
/
Ground
102
15
Voltage output 1
202
3
Common channel 1
103
16
Current output 1
203
/
Ground
104
4
Voltage output 2
204
17
Common channel 2
105
5
Current output 2
205
/
Ground
106
18
Voltage output 3
206
6
Common channel 3
107
19
Current output 3
207
/
Ground

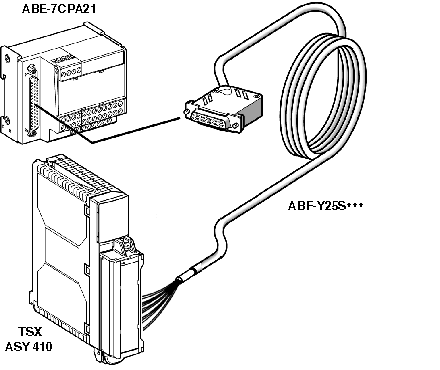

Connecting via the TSX ABF-Y25S••• Cable
Connection of the TSX ASY 410 analog module to the TELEFAST 2 ABE-7CPA21 accessory is carried out using one of the following cables:
These cables include the TSX BLY 01 terminal block.
