Physical description of the analog modules with terminal block TSX BLY 01

At a Glance

The physical description of the terminal block analog modules is given below. These modules include the references: TSX AEY 414 and TSX ASY 410.

Illustration

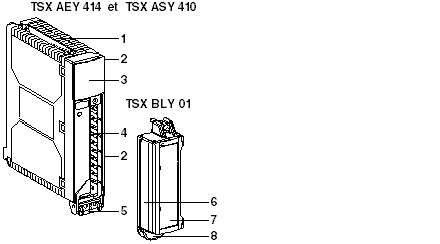

The diagram below shows the different screw terminal block modules :

Elements

The following table describes the different elements of the screw terminal block analog modules :

Number	Description
1	Rigid body supports and protects the electronic card.
2	Reference label for the module (visible on the front and right-hand side of the module).
3	Display panel showing operating modes and faults.
4	Connector receiving the TSX BLY 01 screw terminal block.
5	Module encoder.
6	Pull-out screw terminal block (TSX BLY 01), for connecting sensors or pre-actuators.
7	Screw terminal block access panel; also where you will find the terminal block cabling label and channel label.
8	Terminal block encoder.
