Physical description of analog modules with Sub-D connector(s)

At a Glance

The physical description of the analog modules with connector(s) is given below. These modules include the references:TSX AEY 16••/8••/420 and TSX ASY 800.

Illustration

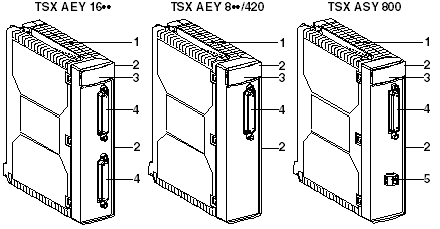

The following diagrams show the different modules with Sub-D connector(s) :

Elements

The following table describes the different elements of the analog modules with Sub-D connector(s):

Number	Description
1	Rigid body supports and protects the electronic card.
2	Reference label for the module (visible on the front and right-hand side of the module).
3	Display panel showing operating modes and faults.
4	25 pin Sub-D connector, for connecting sensors or pre-actuators.
5	24 VDC external power supply terminal block.
