Modicon X80 Rack Dimensions
Original instructions
About us
Height, Width, and Depth
Rack Type
a
b
c
X bus racks
BMXXBP0400(H)
242.4 mm
(9.543 in.)
103.7 mm
(4.08 in.)
19 mm
(0.748 in.)
BMXXBP0600(H)
307.6 mm
(12.11 in.)
BMXXBP0800(H)
372.8 mm
(14.677 in.)
BMXXBP1200(H)
503.2 mm
(19.811 in.)
Ethernet and X bus racks
BMEXBP0400(H)
242.4 mm
(9.543 in.)
105.11 mm
(4.138 in.)
19 mm
(0.748 in.)
BMEXBP0800(H)
372.8 mm
(14.677 in.)
BMEXBP1200(H)
503.2 mm
(19.811 in.)
Redundant power supply racks
BMEXBP0602(H)
375.8 mm
(14.795 in.)
BMEXBP1002(H)
506.2 mm
(19.929 in.)
NOTE: Depending on the modules installed on the rack, the overall size of the Modicon X80 I/O platforms (rack with modules installed) may be higher than dimension of the rack itself. Refer to the section Planning the Installation of Modicon X80 Racks to estimate the overall size.

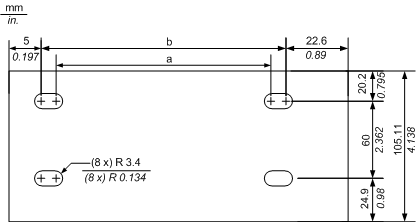

Panel Fastening Holes Dimension and Location
Fastening holes are located at the 4 corners of the rack.
1
Fastening holes
NOTE: You can use M4, M5, M6, or UNC #6 screws in the fastening holes.
This table shows the values that correspond to measurements a and b in the illustration above:
Rack Type
a
b
X bus racks
BMXXBP0400(H)
202.1 mm
(7.957 in.)
214.8 mm
(8.457 in.)
BMXXBP0600(H)
267.5 mm
(10.50 in.)
280 mm
(10.99 in.)
BMXXBP0800(H)
332.5 mm
(13.09 in.)
345.2 mm
(13.59 in.)
BMXXBP1200(H)
462.9 mm
(18.224 in.)
475.6 mm
(18.724 in.)
Ethernet and X bus racks
BMEXBP0400(H)
202.1 mm
(7.957 in.)
214.8 mm
(8.457 in.)
BMEXBP0800(H)
332.5 mm
(13.09 in.)
345.2 mm
(13.59 in.)
BMEXBP1200(H)
462.9 mm
(18.224 in.)
475.6 mm
(18.724 in.)
Redundant power supply racks
BMEXBP0602(H)
332.5 mm
(13.09 in.)
345.2 mm
(13.59 in.)
BMEXBP1002(H)
462.9 mm
(18.224 in.)
475.6 mm
(18.724 in.)
