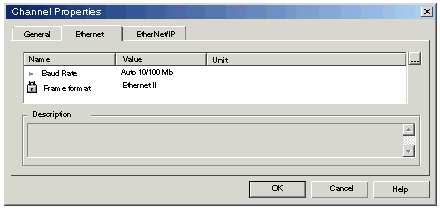

The Ethernet Page
Use the Ethernet page of the Channel Properties window to:
NOTE: Refer to the topic Configuring Properties in the Devices Window for information on how to display property descriptions and edit property values.
Properties
Name
Description
Type
Baud Rate
The transmission speed and duplex mode for the configuration. To change these settings, double-click on the field name and select one of the following:
  • Auto 10/100 Mb (the default)
  • 10 Mb Half duplex
  • 10 Mb Full duplex
  • 100 Mb Half duplex
  • 100 Mb Full duplex
Note: The default setting—Auto 10/100 Mb—is recommended. It causes the connected devices to perform auto-negotiation and thereby determine the fastest common transmission rate and duplex mode.
Read-Write
Frame Format
Ethernet II is the only frame format available for this module.
Read-Only
