Introduction
Use the Rack Viewer to access web pages that describe the identity, placement, configuration and operation of modules in the M340 rack.
To view information describing a specific module—including the BMX NOC 0401 Ethernet communication module—click on the image of that module in the Rack Viewer.
Rack Display

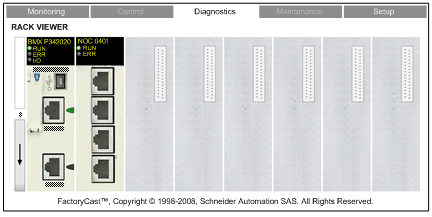

The Rack Viewer looks like this, when it is first opened:
To open this page:
Step
Action
1
Starting at the Home page, click the Diagnostics main menu item. The Diagnostics page opens.
2
On the left side of the Diagnostics page, select Rack Viewer.
3
If necessary, type in the HTTP web access password.
NOTE: The default password is USER.
Rack Viewer Displaying the BMX NOC 0401

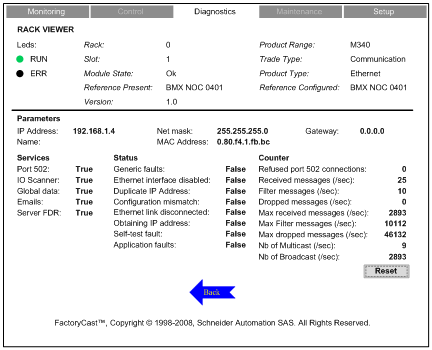

When you click on the BMX NOC 0401 in the rack display, the following web page opens:
Click on the blue Back arrow to return to the rack display.
