CANopen Bus Configuration Lexium 15MP/HP/LP
(Original Document)
About us
Overview
The implementation methodology for a CANopen bus using Modicon M340 is to:
How to Configure the CANopen Slave
This table describes the procedure to configure the CANopen slave.
Step
Action
1

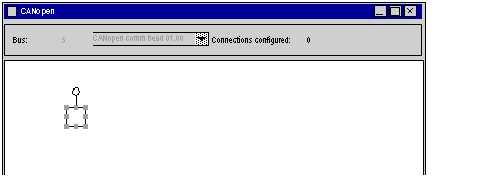

In the Control Expert Project Browser, fully expand the Configuration directory and then double-click on CANopen.
Result: The CANopen window appears:
2
Select Edit → New device.

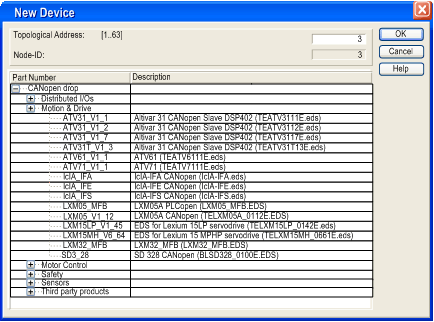

Result: The New Device window appears:
3
Set 3 in Topological Address.
For the slave device choose Lexium15LP_V1_4 for a Lexium 15LP or Lexium15MH_V6_61for a Lexium 15MP.
4
Click on OK to confirm the choice.

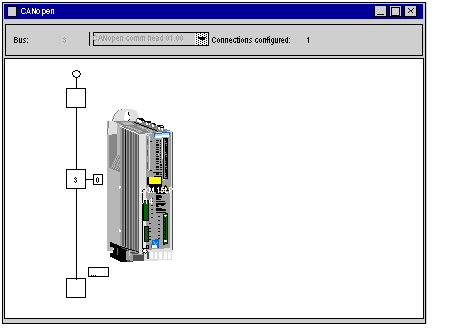

Result: The CANopen window appears with the new device selected:
5
Select Edit → Open module.
If MFB has not already been selected, choose it in the Function area.
6
You will be asked to validate your modifications when closing the Device and CANopen windows.
