Status and Axis Error Code Section

At a Glance

This section is made up of the following MFB blocks:

MC_READSTATUS, which is used to determine the drive status
MC_READAXISERROR, which is used to determine the error values according to the type of errors on the drive and to deduce their causes.

Contents

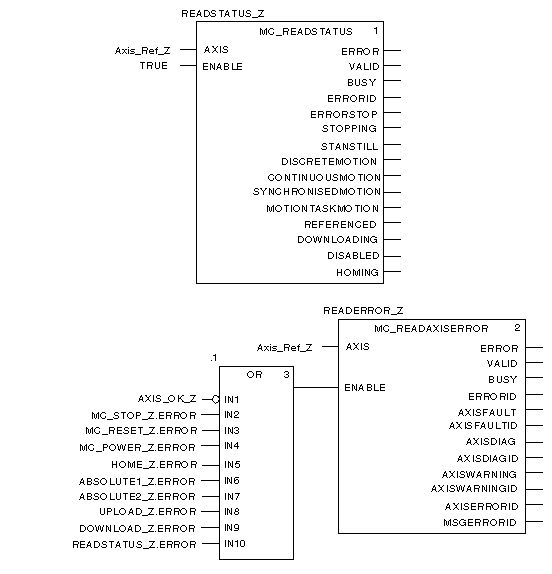

The screen below shows a part of the section:

The UPLOAD_Z.ERROR and DOWNLOAD_Z.ERROR variables must be added to the OR block after the recipe section has been created.
