Backup and Transfer of the Servodrive Parameters

At a Glance

This programming section is made up of the following MFB blocks:

TE_UPLOADDRIVEPARAM, which is used to back up the configuration of a servodrive in a data table
TE_DOWNLOADDRIVEPARAM, which is used to transfer the data table parameters to a servodrive.

Contents

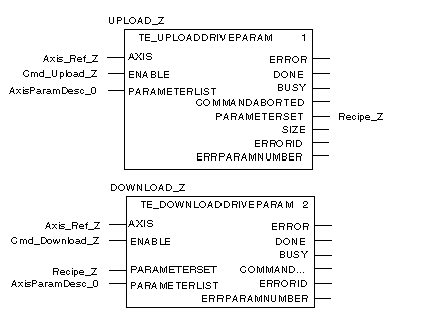

The screen below shows the Recipe section:

If Cmd_Upload_Z is enabled, the servodrive configuration is saved in the data table Recipe_Z (buffer variable for the recipes).

If Cmd_Download_Z is enabled, the servodrive configuration is restored by the data table Recipe_Z.
