140 CRP 93x 00 S908 RIO Head Update

About us
Connecting the Module
NOTICE
INOPERABLE EQUIPMENT
Stop the CPU before updating the 140 CRP 93• 00 module.
Failure to follow these instructions can result in equipment damage.
To establish a connection between the PC and the module, and select the download function proceed as follows:
Step
Action
1
Verify that the CPU is in STOP mode.
2
Click Start → Programs → EcoStruxure Control Expert → OS Loader to launch OS Loader.
Result: The Welcome window is displayed.
3
Click Next.
Result: The Communication Protocol window is displayed.
4
Select the MODBUS01 or MBPLUS01 communication protocol in accordance with the chosen physical connection and click Next.

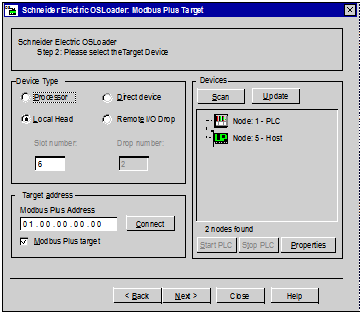

Result: The Target window is displayed:
5
In the Device Type dialog box, select Local Head and type the Slot number.
6
If needed, click Scan to display all currently active devices.
7
In the Devices dialog box, select the PLC node (the PC is connected to the CPU via Modbus or Modbus Plus, and we address the S908 Local Head).
8
In the Target Address dialog box, click Connect to connect the PC to the module.
9
In the Devices dialog box, click Properties if you need to display information on the module status.
10
Click Next.
Result: The Operation window is displayed.
Selecting and Downloading the Firmware File
Do not interrupt the communication between the PC and the module while downloading a file because it can cause irreparable damage to the module.
NOTICE
EQUIPMENT DAMAGE
During the download:
  • Do not power OFF the CPU and module.
  • Do not power OFF the PC.
  • Do not shut down the OS Loader.
  • Do not disconnect the communication cable.
Failure to follow these instructions can result in equipment damage.
After connecting the module, proceed as follows to select and download the firmware file:
Step
Action
1
Select Download OS to device and click Browse.
2
Select the file to download into the module.
3
Click Next.

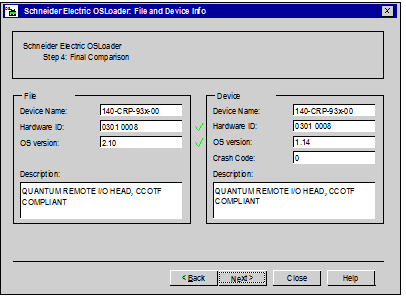

Result: The File and Device Info window displays information on the firmware file to download and the device connected:
Check the PC binary file version. The compatibility with the 140 CRP 93• 00 firmware is indicated as follows: PC file is compatible with the module: It is indicated by a green tick between the File and Device dialog box. The transfer is allowed. PC file version is lower than the module version: It is indicated by a yellow tick between the File and Device dialog box. The transfer is allowed but it downgrades the module to an earlier version. PC file is not compatible with the module: It is indicated by a red tick between the File and Device dialog box and the Next button is grayed. The transfer is not allowed. Solve the incompatibility before proceeding with the next step.
4
Click Next.
Result: The Summary window is displayed.
5
Click Download.
Result: A popup window is displayed.
6
Click Yes to validate the information displayed and launch the transfer.
Result: The Progress window is displayed with the remaining time. The duration depends on the protocol used and the PC configuration.
7
In the Progress window, check if the download is completed.
Result: The SUCCESS message is displayed.
NOTE: If the SUCCESS message is not displayed, check each step and contact your local Schneider Electric office for assistance.
8
Click Close and exit OS Loader.
Checking the Firmware Version
To check the module firmware version, proceed as follows:
Step
Action
1
Verify that the CPU is in STOP mode.
2
Open OS Loader.
Result: The Welcome window is displayed.
3
Click Next.
Result: The Communication Protocol window is displayed.
4
Select the MODBUS01 or MBPLUS01 communication protocol in accordance with the chosen physical connection and click Next.
Result: The Target window is displayed.
5
In the Device Type dialog box, select Local Head and type the Slot number.
6
In the Devices dialog box, click Scan to update the list of devices.
7
In the Devices dialog box, select the PLC node.
8
In the Target Address dialog box, click Connect to connect the PC to the module.
9
In the Devices dialog box, click Properties to check the firmware version.
10
Click Close and exit OS Loader.
