The input signals connected to the 140 ERT 854 10 go through a multistage preprocessing stage before they are made available to the user program as binary, counter values or events. The preprocessing can be set with parameters for each individual input.

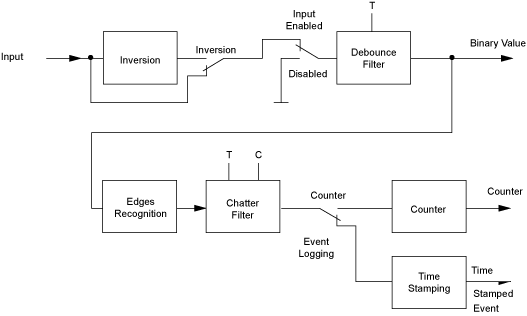

Signal Processing Sequence
The processing of the input signals is carried out according to the parameters set. Parametering is carried out via a Parameter configuration window.
