You plan:
-
a slot in the Quantum rack (local or RIO station).
-
the ERT Paramteres. Each of the 4 ERT 854 10 input function block can be configured with a different functionality (e.g. counters or inputs with our without event recording).
-
the connection of the reference voltage for each input group.
-
the Process Peripherials Connection.
-
the connection of an external time receiver.
Mounting Position in the Rack
Insert the module in any I/O slot on the Quantum and screw it to the rack. The module must be screwed into position to ensure correct operation (EMC).

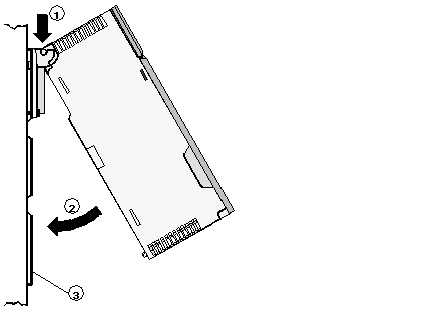

Mounting the Module
1
Insert the module
2
Screw the module to the rack
3
Rack
