Pin Assignment

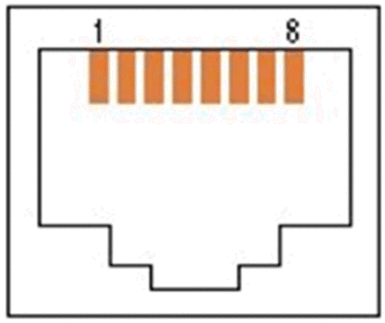

The Ethernet port uses an RJ45 female connector. Pins are positioned within the female RJ45 connector for the Ethernet port as follows
The Ethernet signals assigned to each pin include:
RJ45 Pin Number |
Ethernet Signal |
|---|---|
1 |
TD+ (Transmit data +) |
2 |
TD– (Transmit data –) |
3 |
RD+ (Receive data +) |
4 |
Not connected |
5 |
Not connected |
6 |
RD– (Receive data –) |
7 |
Not connected |
8 |
Not connected |
Ethernet Cables
You can purchase the following Ethernet cables from Schneider Electric:
Part Number |
Length |
Description |
Connector |
Marking |
|---|---|---|---|---|
TCSECE3M3M1S4 |
1 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
CE |
TCSECU3M3M1S4 |
1 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
UL |
TCSECE3M3M2S4 |
2 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
CE |
TCSECU3M3M2S4 |
2 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
UL |
TCSECE3M3M3S4 |
3 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
CE |
TCSECU3M3M3S4 |
3 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
UL |
TCSECE3M3M5S4 |
5 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
CE |
TCSECU3M3M5S4 |
5 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
UL |
TCSECE3M3M10S4 |
10 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
CE |
TCSECU3M3M10S4 |
10 m |
Cat 5e shielded, twisted pair straight cable |
RJ45 |
UL |
