Installation Rules

Introduction

When assembling MC80 module, you must comply with certain installation rules.

Module Installation Rules: Description

WARNING

UNEXPECTED EQUIPMENT OPERATION

Install MC80 lengthways and horizontally to facilitate ventilation.

MC80 is cooled by natural convection. Other positions may cause overheating and unexpected equipment operation.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

If MC80 is installed in a cabinet, you are advised to comply with the following measures:

leave a minimum space of 80 mm (3.15 inch) above and 60 mm (2.36 inch) below the modules to facilitate air circulation
leave a minimum space of 60 mm (2.36 inch) between the modules and the wiring ducts to facilitate air circulation

The minimum depth of the cabinet should be:

WARNING

INADEQUATE THERMAL CLEARANCE

Maintain proper thermal distances when installing the MC80 to prevent overheating and unexpected equipment operation.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

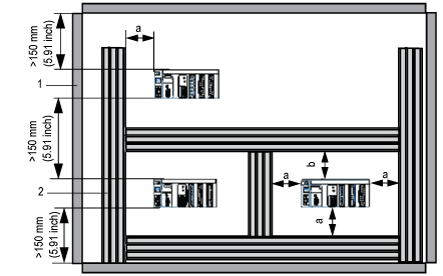

The following figure shows the rules of installation in a cabinet:

Greater than or equal to 60 mm (2.36 inch)

Greater than or equal to 80 mm (3.15 inch)

Installation or casing

Wiring duct or tray
