Example of Metering Flow
(Original Document)
About us
Introduction
The following example uses a weighing module in slot 2 of the PLC.

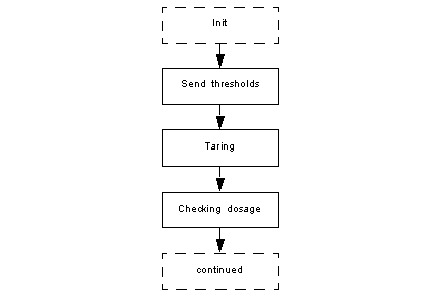

It describes a metering flow in stages.
Example

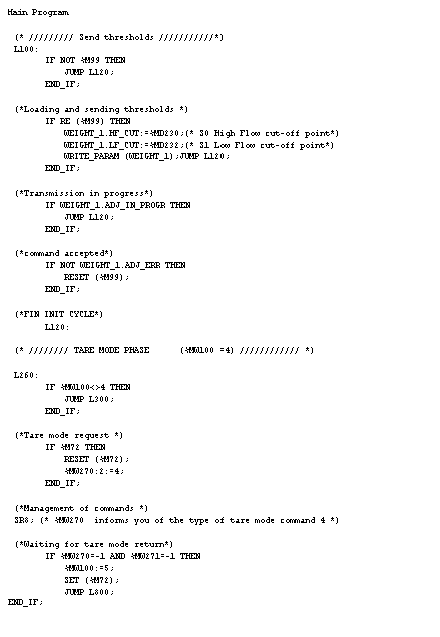

The program is processed in structured text. The WEIGHT_1 variable of type WEIGHING_ISPY101 is associated with channel 0 of the weighing module situated in rack 6.

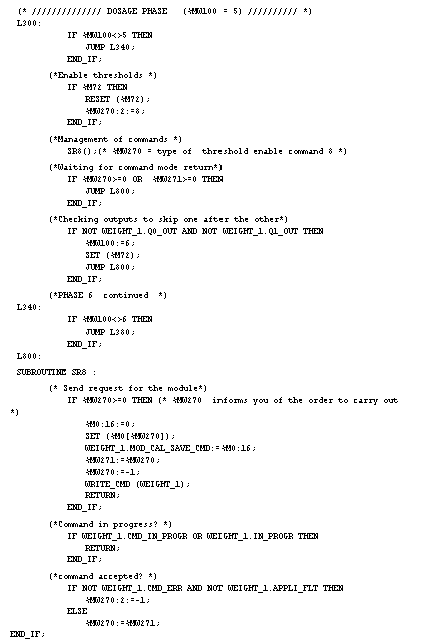

Example (continued)
