Example of a Tare Mode
(Original Document)
About us
Introduction
This example illustrates the main steps of a weighing process: it deals with carrying out a switch into NET weight (tare mode).
Example

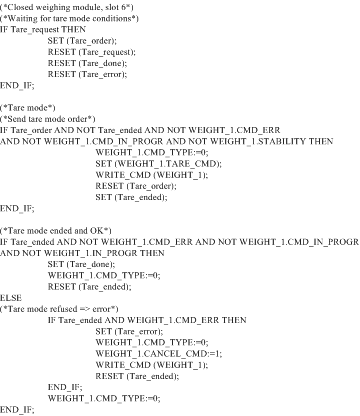

The TARE_ORDER bit is used for this action. Its positioning causes the gross weight, which is currently measured as the weighed tare, to be acknowledged, then it causes the display to be switched to NET mode.
The WEIGHT_1 variable of type T_WEIGHING_ISPY101 is associated with channel 0 of the weighing module situated in rack 6.
