How to Access the Channel Diagnostics Function of the Weighing Module

Introduction

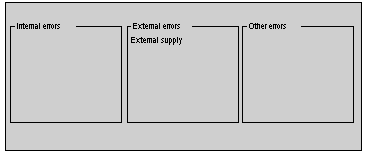

The Channel diagnostics function displays error messages when they occur, classified according to category:

An inoperable channel is indicated when the Fault LED, situated on the Fault tab of the configuration editor, switches to red.

Procedure

The table below shows the procedure for accessing the Channel diagnostics screen.

Step	Action
1	Access the weighing module configuration screen.
2	Select the Fault tab. Result: The list of channel diagnostics appears. Note: Access to the channel diagnostics information is also possible by program (instruction READ_STS).
