Reading Configuration Parameters
(Original Document)
About us
Introduction
The set of parameters entered during the configuration of the module is accessible by program in read only.
These parameters are coded in 3 words of the %KW constant area.
Coding of the Maximum Weight
The maximum weight reading, configured for the measuring channel, may be accessed with the word %KWr.m.0.0.
Coding the Measurement Unit
Reading the unit and the scale division, configured for the measuring channel, is accessible with the word %KWr.m.0.1.
The measurement unit is coded on 3 bits of the least significant byte.
The following table describes the coding of the measurement unit.
Bits 0 to 2
Corresponding Unit
Role
0
g
gram
1
kg
kilogram
2
t
tonne (metric)
3
lb
pound (=453g)
4
oz
once (=28.35g)
5
<none>
no unit
Scale Division Coding
The reading of the unit and the scale division configured for the measuring channel, is accessible with the word %KWr.m.0.1.
NOTE: The scale division is defined in the same unit as that of the measurement.
The measurement unit is coded on 5 bits of the most significant byte.
The following table describes the coding of the scale division.
Bits 8 to 12
Scale Division Value
Bits 8 to 12
Scale Division Value
0
0.001
11
5
1
0.002
12
10
2
0.005
13
20
3
0.01
14
50
4
0.02
15
100
5
0.05
16
200
6
0.1
17
500
7
0.2
18
1000
8
0.5
19
2000
9
1
20
5000
10
2
Coding of the Stability (of zero, thresholds, outputs, and format)
The reading of the extent of range and the stability time and the extent of range from zero and the activity of zero tracking, of the overload threshold, the utilization of the outputs and the format of the weight values, configured for the channel measurement are accessible with the memory word %KWr.m.0.2.

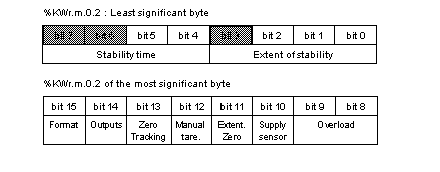

Coding of the word %KWr.m.0.2.
The following table describes the coding of the extent of stability (bits 0 to 2).
Value Read
Equivalence in 1/4 of the Scale Division
0
2
1
3
2
4
3
6
4
8
The following table describes the coding of the stability time (bits 4 to 5).
Value Read
Equivalence in Seconds
0
0.4
1
0.5
2
0.7
3
1
The following table describes the coding of the overload (bits 8 to 9).
Value Read
Type of Overload Selected
0
Maximum weight + 9 scale divisions
1
Maximum weight + 2% of the maximum weight
2
Maximum weight +5% of the maximum weight
The following table describes the coding of the other parameters. These parameters are each coded on one bit of the word %KWr.m.0.2.
Bit Number
Parameter
Bit at 0
Bit at 1
11
Recalibration range
+/-2% of the maximum weight
+/-5% of the maximum weight
12
Tare predefined
No predetermined tare
Tare predefined
13
Activity of the zero tracker
Inactive
Active
14
Utilization of the outputs
Not used
Used
15
Format
Legal (physical unit with fixed point)
High resolution ( hundredth of a fixed point physical unit)
