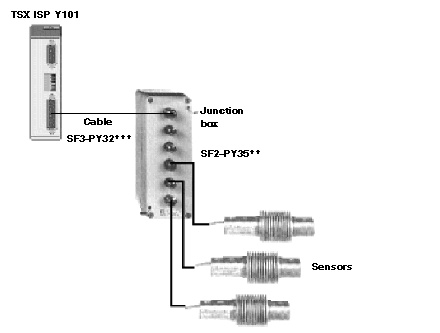

The measurement sensors are connected using a 15-pin female Sub-D connector on the module side.
The module and the Sub-Ds can be plugged-in and unplugged with the power on.
Use a 6 conductor cable with a 15-pin Sub-D connector.
Sensor supply is exclusively provided by the module.

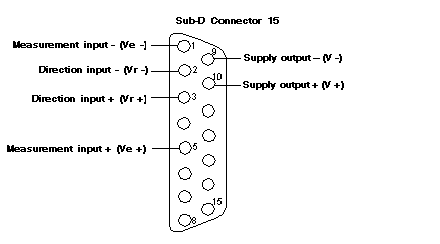

Connection of the 15-pin Sub-D connector is shown in the following illustration:
Depending on the accuracy desired, there are two ways to cable the sensor inputs. In each case, cable them in order to obtain a measurement.

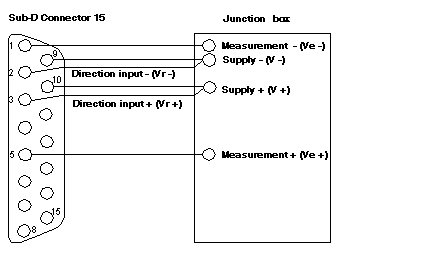

High accuracy cabling or where the length of the cable between the module and the sensor connection unit is great:

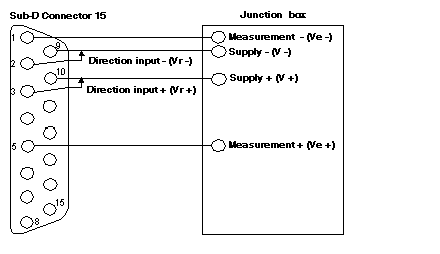

Average accuracy cabling or where the length of the cable between the module and the sensors connection is not great:
