TSX ISP Y101 Weighing Module Description

Introduction

The following is a physical description of the TSX ISP Y101 weighing module.

Illustration

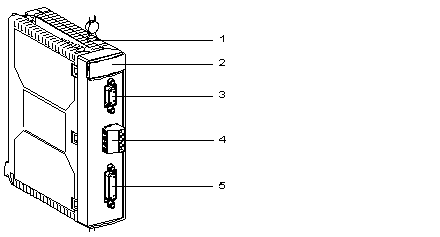

The following illustration presents the TSX ISP Y101 module.

Illustration Legend

The following table describes the different elements of the weighing module:

Number	Description
1	a plastic case equipped with shielding plates to help protect the electronic circuits and help protect against radiant interference
2	display block
3	a 9-pin Sub-D female connector for connecting the remote display (TSX XBT N410)
4	a 5-pin screw terminal block for connecting discrete outputs
5	a 15-pin Sub-D female connector for connecting weighing sensors
