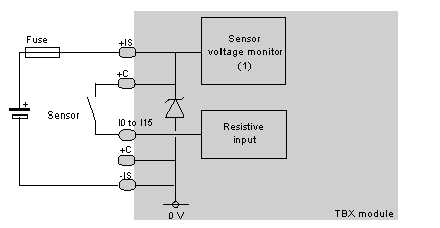

The following illustration shows the circuit diagram for a resistive input.
1
Guaranteed threshold for monitored voltage OK: > 18 V, guaranteed threshold for monitored voltage faulty: < 14 V.

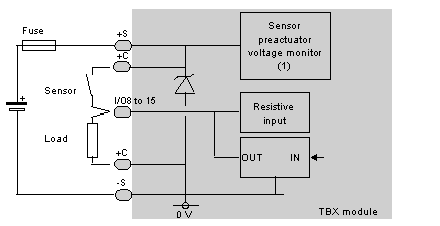

The following illustration shows the circuit diagram for a programmable input/output.
1
Guaranteed threshold for monitored voltage OK: > 18 V, guaranteed threshold for monitored voltage faulty: < 14 V.

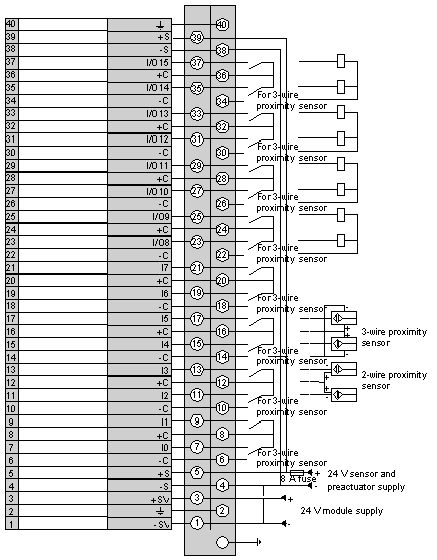

The following diagram illustrates the wiring of the terminal.
NOTE: a quick blow 8 A fuse must be wired to the sensor/preactuator power supply.
The
two +S terminals as well as the two -S terminals. The -SV terminal and a -S (0 V) terminal must also be connected together.
