Connecting the module TBX DES 1633
(Original Document)
About us

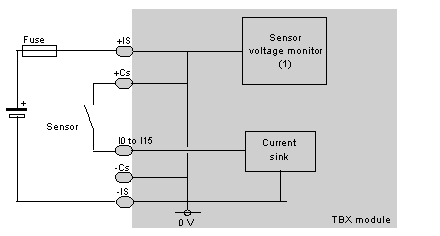

Circuit diagram
The following illustration shows the circuit diagram for a current sink input.
1
Guaranteed threshold for monitored voltage OK: > 36 V, guaranteed threshold for monitored voltage faulty: < 28 V.

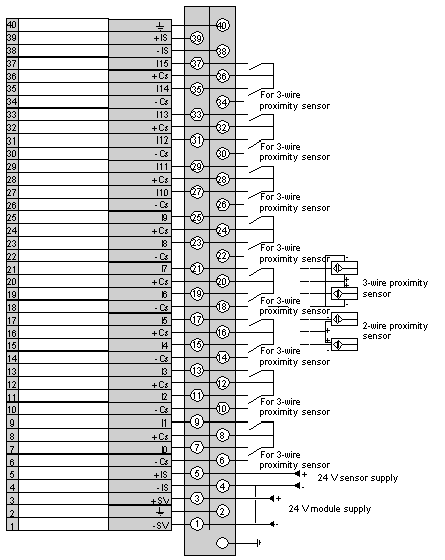

Terminal block wiring
The following diagram illustrates the wiring of the terminal.
NOTE: it is not necessary to connect the two +IS terminals together, nor the two -IS terminals. The -SV terminal and a -IS (0 V) terminal must however be connected together.
