Connecting the module TBX CSP 1622
(Original Document)

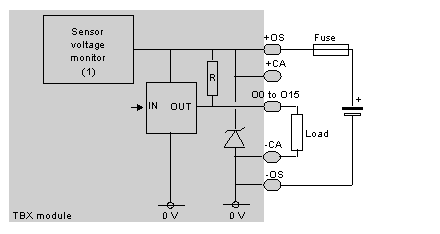

Circuit diagram
The following illustration shows the circuit diagram for a 24 V 0.5 A transistor output.
1
Guaranteed threshold for monitored voltage OK: > 18 V, guaranteed threshold for monitored voltage faulty: < 14 V.

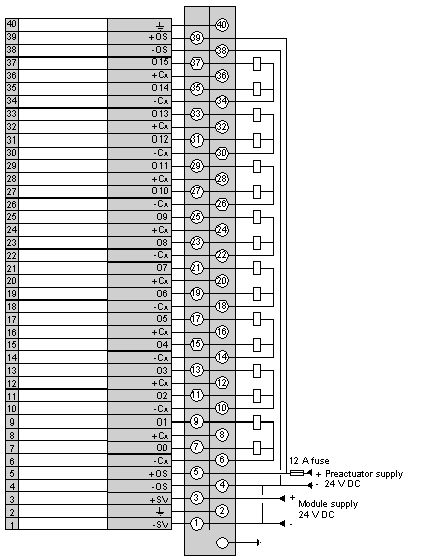

Terminal block wiring
The following diagram illustrates the wiring of the terminal.
NOTE: the two +OS terminals must be wired together as well as the two -OS terminals. The -SV terminal and a -OS (0 V) terminal must also be wired together.
