Displaying faults in TBX analog modules
(Original Document)
About us
Description

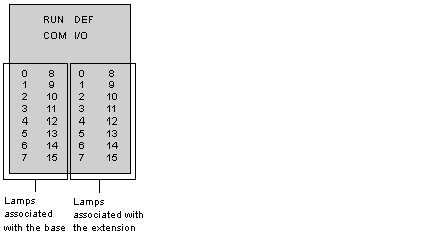

The following drawing shows the display block indicator lamps for the TBX analog modules.
The following table shows the operation of the display lamps for the TBX distributed I/O modules.
Lamps
Lit
Flashing
Off
COM
(yellow)
Shows whether a Fipio frame is being transmitted or received.
-
-
I/O (1)
(red)
Wiring or sensor/preactuator fault:
  • short-circuit,
  • open circuit,
  • no voltage.
-
No external fault.
Channel 0 to 3 (2)
(red)
-
Fault in the associated channel.
A channel fault is detected if there is a fault on the sensor link.
-
Channel 0 to 15
(red)
-
When all lamps (0 to 15) are flashing (some may be displayed as a steady light), it means that an internal fault has been detected. If this is the case, the module must be changed.
Note: if an internal fault occurs on the extension, check that this extension has been properly connected and powered.
-
Key:
(1)
Lamp not used for the TBX ASS 200 and TBX AMS 620 modules.
(2)
Only on the TBX AES 400 module.
