These distributed I/O modules may be installed as close as possible to the sensors and preactuators.
They can be mounted either vertically or horizontally on supports (mounting plate, beam, etc.) with a minimum width of 8 cm.

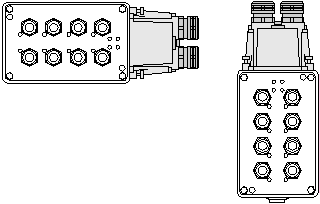

The following drawing shows horizontal or vertical installation for the TBX IP65 modules.
