Introducing the TBX AMS 620 module
(Original Document)
About us
General
The TBX AMS 620 base unit is an analog output module containing 6 high-level non-insulated channels and 2 insulated outputs. It must be associated to a TBX LEP 030 communicator.
This module supports the following ranges on each input :
This module supports the following ranges on each output :
Overview

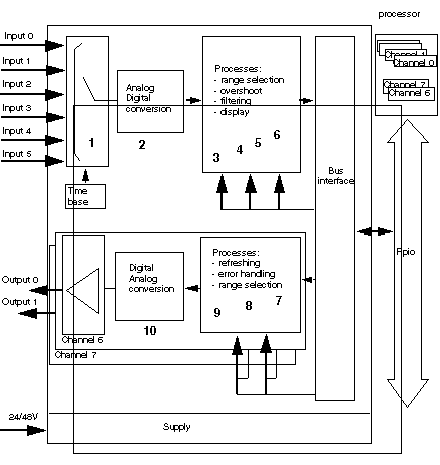

Overview of the TBX AMS 620 module associated to the TBX LEP 030 communicator:
Description
The TBX AMS 620 module associated with the TBX LEP 030 communicator supports the following input functions :
Address
Function
1
  • acquisition of the 6 channels using multiplexing,
2
  • 12 bit + sign analog digital conversion,
3
  • range selection for each input: voltage, current, thermocouple,
4
  • input under/overshoot monitoring,
5
  • measurement filtering,
6
  • user-defined measurement formatting.
The TBX AMS 620 module associated with the TBX LEP 030 communicator supports the following output functions:
Address
Function
7
refreshing the digital values transmitted by the processor,
8
processing PLC dialog faults,
9
range selection for each output: voltage, current,
10
digital analog conversion.
