The cycle time for the TBX AMS 620 module is fixed at 42.4 ms.
The measurements are sequenced in the following manner: channel 0, channel 1, channel 2, channel 3, channel 4, channel 5 then acquisition of two internal reference voltage channels, required for cyclical calibration.
Breakdown of the cycle time
Scanning time values:
|
Type of time
|
Time
|
|
Scanning time for a channel
|
|
|
Acquisition time for a complete cycle
|
|

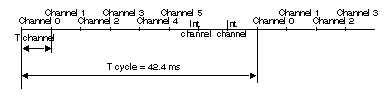

Illustration:
NOTE:
-
The cycle is always identical, even when some channels are not in use,
-
The time required for the program to access the measurements also depends on the transmission times on the Fipio bus and on the PLC task period.
