NOP850_EVTS Elementary Function Block Operations for the BMENOP0300

Introduction

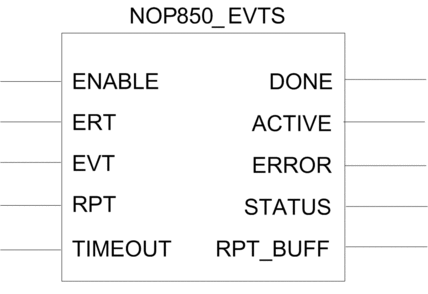

Use the NOP085_EVTS elementary function block (EFB) to:

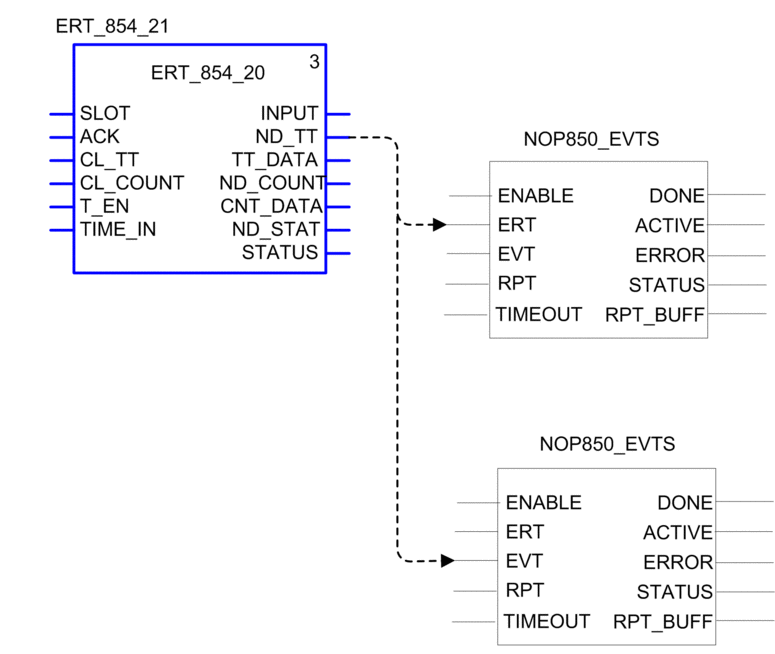

Manage and synchronize the transfer of external events from an ERT or CRA into the memory of the BMENOP0300 module.
Manage the transfer external events between a PLC and the BMENOP0300 module.

NOTE:

When the timestamped event originates at a Quantum platform, the time stamp is local time (UTC+TimeZone). The BMENOP0300 firmware converts this local time into UTC and includes it in the outgoing report control block. The time zone depends on the BMENOP0300 SNTP configuration in Modicon IEC61850 Configuration Tool.
When the timestamped event originates at an M80 platform, the time stamp is UTC time and BMENOP0300 firmware includes it in the outgoing report control block without conversion.

Input parameter	Type	Description
`ENABLE`	`BOOL`	Start transferring
`ERT`	`BYTE`	ERT type: 0 = Quantum ERT 1 = Mx80 ERT
`EVT`	One of the following: IED_EVT_Q IED_EVT_M	Event description, including value, quality, time stamp, ID, DDT, and IED_EVT_x
`RPT`	`IED RPT`	Report information. DDT IED_RPT
`TIMEOUT`	`INT`	Time threshold in 100 ms increments for triggering an event (a value greater than 0)

Output parameter	Type	Description
`DONE`	`BOOL`	A value of 1 (true) indicates the function block completed successfully.
`ACTIVE`	`BOOL`	A value of 1 (true) indicates execution of the function block is in progress.
`ERROR`	`BOOL`	A value of 1 (true) indicates the function block detects an execution error.
`STATUS`	`INT`	Identifies the detected error: 1 = Input parameter is not valid. 2 = <Reserved> 3 = Time format is not valid. NOTE: Only dates after January 01, 2000 are valid. 4 = time out occurrence (default 10 s) 5 = parameter change during runtime 6 = Data change counter of report is abnormal NOTE: This EFB restarts if a time out (4) or abnormal data change counter event (6) occurs.
`RPT_BUFF`	`IED ERT BUF`	Raw buffer containing event time stamp entities.
