NOP850_EVTS Elementary Function Block for the 140 NOP 850 00

Introduction

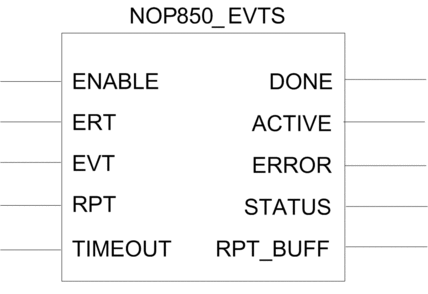

Use the NOP850_EVTS elementary function block (EFB) to:

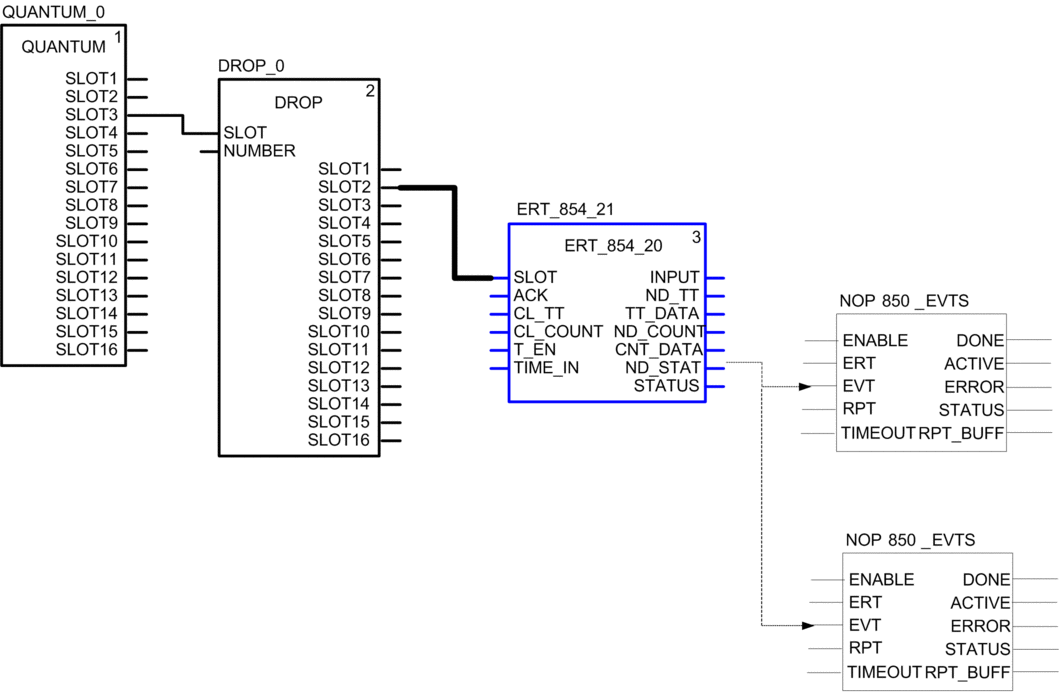

Manage and synchronize the transfer of external events from an ERT or CRA into the memory of the 140 NOP 850 00 module.
Manage the transfer external events between a PLC and the 140 NOP 850 00.

Input parameter	Type	Description
`ENABLE`	`BOOL`	Start transferring.
`ERT`	`BYTE`	ERT type: 0 = Quantum 1 = Mx80 NOTE: When ERT type is: Quantum: the time stamp is local time (UTC+TimeZone). The module converts local time into UTC and includes it in ERT reports. The time zone is set in the SNTP configuration window of the Modicon IEC61850 Configuration Tool. Mx80: the time stamp is UTC time. No configuration is necessary.
`EVT`	Either: IED_EVT_M, or IED_EVT_Q	Event description, including value, quality, time stamp and ID. Type depends upon the platform, either Mx80 or Quantum.
`RPT`	`IED RPT`	Report information.
`TIMEOUT`	`INT`	Time threshold in 100 ms for triggering an event. A value greater than 0.

Output parameter	Type	Description
`DONE`	`BOOL`	A value of 1 (true) indicates the function block completed successfully.
`ACTIVE`	`BOOL`	A value of 1 (true) indicates execution of the function block is in progress.
`ERROR`	`BOOL`	A value of 1 (true) indicates the function block detects an execution error.
`STATUS`	`INT`	Identifies the detected error: 1 = Input parameter is not valid. 2 = <Reserved> 3 = Time format is not valid. NOTE: Only dates after January 01, 2000 are valid. 4 = Time out occurrence (default 10 s) 5 = Parameter change during runtime
`RPT_BUFF`	`IED ERT BUF`	Raw buffer containing event time stamp entities.

IED_RPT

Element	Type	Description
Status	WORD	Report status: Bits 0...7: Report enabled/disabled. Each bit represents one report instance: 0 = disabled 1 = enabled Bits 8...15: Buffer overflow: 0 = No buffer overflow 1 = Overflow
DaChgCnt	WORD	A counter value that increments each time a report is generated.

Element

Type

Description

Status

WORD

Report status:

Bits 0...7: Report enabled/disabled. Each bit represents one report instance:
- 0 = disabled
- 1 = enabled
Bits 8...15: Buffer overflow:
- 0 = No buffer overflow
- 1 = Overflow

DaChgCnt

WORD

A counter value that increments each time a report is generated.

IED_ERT_BUF

Element	Type	Description
NewTS	BYTE	Time stamp of the new event.
EvtSrc	BYTE	Event source: 0 = Quantum 1 = Mx80
EventEntity	WORD[6]	Event entity, which can be either: `IED_EVT_M` or `IED_EVT_Q`

Element

Type

Description

NewTS

BYTE

Time stamp of the new event.

EvtSrc

BYTE

Event source:

EventEntity

WORD[6]

Event entity, which can be either:

IED_EVT_M: This structure describes the format of events used by Mx80 devices using the IEC61850 format:

Element	Type	Description
Rese1	BYTE	<Reserved>
Value	BYTE	Input value.
EventID	WORD	An event identifier, either: The channel number; or A user-defined value.
SecondSince Epoch	DWORD	The interval, in seconds, from 1970-01-01 00:00:00 UTC to the present.
FracOfSec_L	WORD	The fraction of the current second when the value element, above, has been determined. The fraction of second is calculated as: (SUM from i = 0 to 23 of bi2*–(i+1) s).
FracOfSec_H	BYTE
TimeQuality	BYTE	TimeQuality describes provides information regarding the sending IED, and consists of the following attributes:
		Bits	Attribute	Type	Description
		0...4	Time Accuracy	CODED ENUM	The accuracy class of the time source. Only the value of 10 = 1 ms is supported.
		5	Clock Not Synchronized	BOOL	When set to 1, this indicates the time source of the sending IED is not synchronized with external UTC time.
		6	Clock Failure	BOOL	When set to 1, this indicates the time source of the sending IED is unreliable.
		7	Leap Seconds Known	BOOL	When set to 1, this indicates that SecondSinceEpoch value includes all leap year seconds. When set to 0, this indicates leap seconds are not included and seconds are calculated from the current date assuming a constant day length of 86400 s.

IED_EVT_Q: This structure describes the format of events used by Quantum devices using the IEC61850 format:

Element	Type	Description
Rese1	BYTE	<Reserved>
Value	BYTE	Input value.
EventID	WORD	An event identifier, either: The channel number; or A user-defined value.
Rese2	BYTE	<Reserved>
Month	BYTE	Month: 0...12
Year	BYTE	Year: 00...99 (indicating 2000 to 2099)
Ms_Lsb	BYTE	Time in milliseconds: 0...59999 (least significant byte).
Ms_Msb	BYTE	Time in milliseconds: 0...59999 (most significant byte).
Min	BYTE	Invalid time/minutes: 0...59
Hour	BYTE	Summer time/hours: 0...23
Day	BYTE	Weekday.Day of the month: 1...31
