Status Summary

Introduction

Use the Status Summary page to view the status of:

the LEDs located on the front of the 140NOC78•00 head module
the Ethernet services supported by the 140NOC78•00 module
the 140NOC78•00 module in its role as:
- scanner
- Modbus TCP server
- EtherNet/IP messaging server

Status Summary Display

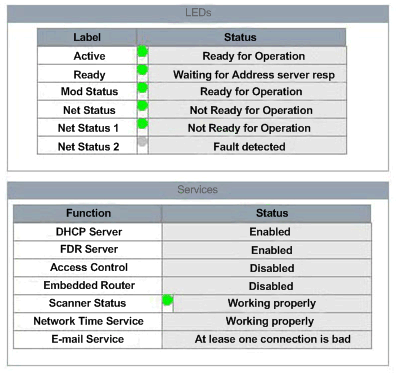

The Status Summary page looks like this:

To open this page:

Step	Action
1	Starting at the Home page, click the Diagnostics main menu item. Result: The Diagnostics page opens.
2	On the left side of the Diagnostics page, select Ethernet → Status Summary.
3	If necessary, type in the HTTP web access password. NOTE: The default password is USER.

Status Summary Data

The LEDs section of the page can present the following operational states:

LED	Color	Text Descriptions
Active	Green	Ready for operation
Active	Red	Detected error present
Ready	Green	Waiting for address server response
	Red	Duplicate IP address
		Waiting for served IP configuration
		Default IP address in use
		Detected configuration error
Module Status	Green	Ready for operation
	Red	Not configured
		Fault detected
		Recoverable fault detected
Network Status	Green	Ready for operation
	Red	Detected connection error
	Red	Duplicate IP address
Network Status 1	Green	Ready for operation
	Gray	Detected connection error
	Gray	Duplicate IP address
Network Status 2	Green	Ready for operation
	Gray	Detected connection error
	Gray	Duplicate IP address

The Services section of the page can present the following functional conditions:

Function	Color	Text Descriptions
DHCP Server	—	Enabled
FDR Server		Enabled
Access Control		Disabled
IP Forwarding		Disabled
Scanner Status	Green	Working properly
	Red	At least one connection is bad
	Gray	Not configured
Network Time Service	—	Working properly
E-mail Service	—	At least one connection is bad
