CSPN Security Target

CSPN Introduction

CSPN (Certification de Sécurité de Premier Niveau) is a cyber security certification currently used in the country of France. A product with CSPN certification is expected to withstand a cyber attack driven by two man months of skilled hackers.The Modicon M580 platform is CSPN-certified. This topic describes the environment, programmable automation controller (PAC) configurations, and parameters that meet CSPN requirements to effect the highest level of security.

M580 Introduction

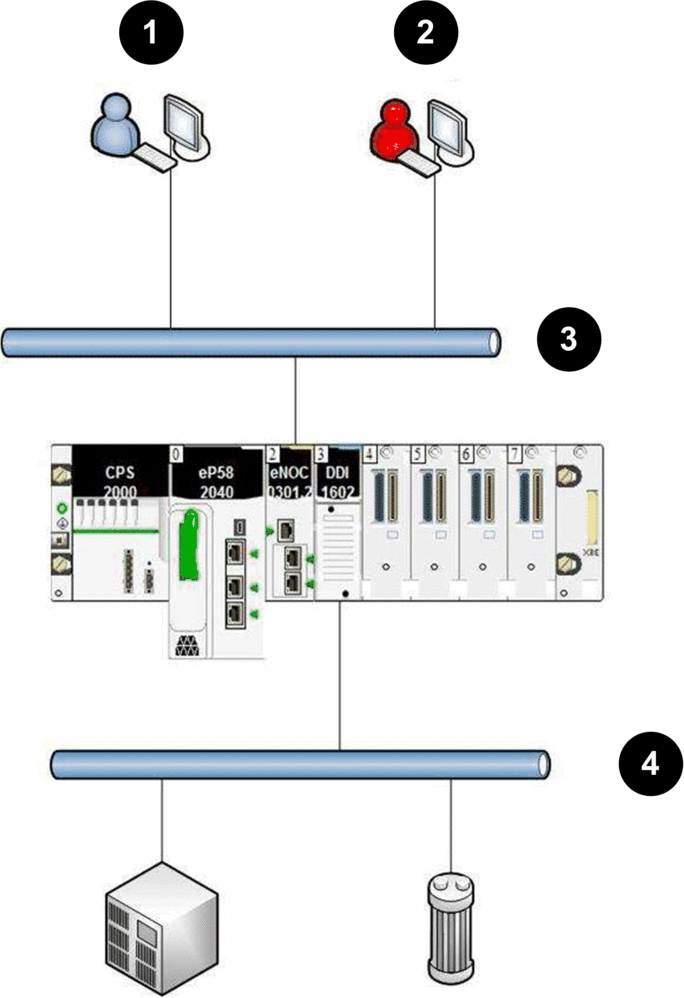

The M580 PAC is designed to control and command an industrial process continuously without human intervention. At each step, the PAC processes the data received from its inputs, the sensors, and sends commands to its outputs, the actuators. Exchanges with the supervision (HMI, SCADA) are performed via a BMENOC0301/0311 Ethernet communication module on the local rack with the PAC.The PAC can run in a hostile environment despite humidity, dust, or unusual temperatures for IT systems and strong EMC or mechanical constraints.

M580 Features

The M580 PAC offers the following features:

Feature	Description
user program execution	An M580 PAC runs a user program that processes the inputs and updates the outputs.
input/output management	An M580 PAC can read local inputs and write local outputs. These inputs/outputs can be digital or analog and allow the M580 PAC to control and command the industrial process.
communication with the supervision	An M580 PAC can communicate with SCADA to receive commands and transmit process data using the Modbus protocol.
administrative functions	An M580 PAC includes administrative functions, which are provided in Control Expert , for configuration and programming.
remote logging	An M580 PAC supports the definition of a remote logging policy; it can log security and administrative events.

M580 Configuration

A CSPN-certified M580 configuration includes these components:

Module	Firmware	Description
BMEP58•0•0	V2.20 or later	This CPU follows the security rules described in the security documents (see assumptions).
BMENOC0301/0311	V2.11 or later	This Ethernet module manages the encrypted communications with the upper layer (supervision and engineering software Control Expert ).

NOTE: Control Expert programming software, PCs, other PAC modules, and backplane components are not included in the scope of the certification.

User Profiles

Users that interact with the PAC for an improved implementation have the following predefined Control Expert Security Editor’s profiles:

User Profile	Description
ReadOnly	No application modification is authorized.
Operate	Only application execution and parameter modification are enabled.
Program	All functions are enabled.

Improved Implementation

These items contribute to a healthy environment for an improved implementation:

Item	Security Considerations
security documentation	All recommendations in the documentation (user guides, white papers, etc) are applied prior to the evaluation.
administrators	System administrators are competent, trained, and trustworthy.
premises	Access to the PAC location is restricted to trustworthy people. In particular, an attacker does not have access to the physical ports of the PACs. Since identical products can be purchased freely, the attacker can obtain one to research vulnerabilities by any possible means.
unevaluated services disabled	Any services that are not covered by the security target are disabled in the configuration or by a user program (as described in the security documentation).
user application verification	The integrity of the Control Expert application is controlled by the administrator before it is loaded in the PAC.
active logging	The logging function is operational and the logs are not corrupt.
log checking	System administrators regularly check the local and remote logs.
first configuration	The initial configuration is uploaded to the PAC through the USB interface, and the PAC is unplugged from the network.
firmware upgrade	The firmware upgrade is performed through the USB interface, and the PAC is unplugged from the network.
strong passwords	System administrators employ strong passwords that combine uppercase letters, lowercase letters, numbers, and special characters.

Operating Modes

The following operating modes are compliant with CSPN requirements:

During commissioning phase, initial configuration of the PAC can be done with either a Control Expert engineering station connected in point-to-point to the Ethernet port or to the local USB port of the PAC.
In normal operating conditions (running mode, SCADA connected on the Ethernet control network), confirm that Control Expert is disconnected.
Perform any further modification of the configuration or application program with Control Expert connected to the USB port of the PAC.

Cyber Security Parameters

This table describes the cyber security parameters:

Parameter	Topic	User Guide
ACL activated.	Configuring Security Services	Modicon M580 BMENOC0301/0311 Ethernet Communications Module User Guide
IPsec activated on BMENOC0301/0311 with maximum security.	Configuring Security Services
Enforce security selected (FTP, TFTP, HTTP, DHCP/BOOTP, SNMP, EIP, NTP protocols deactivated).	Configuring Security Services
Log activated.	Logging DTM and Module Events to the Syslog Server
RUN/STOP by input only activated.	Managing Run/Stop Input	Modicon M580 Hardware Reference Guide
Memory protection activated.	Memory Protect
Helping secure a project: Application locked with login and password. Section protection activated.	Helping Secure a Project in Control Expert
No upload information stored inside CPU.	PAC Embedded Data	EcoStruxure™ Control Expert, Operating Modes
Default password for FTP service changed.	Firmware Protection
Application sections are set with no read/write access.	Section and Subroutine Protection

Critical Assets

Environment: This table shows the assets that are critical to the environment:

Asset	Description for Proper Use
control-command of the industrial process	The PAC controls and commands an industrial process by reading inputs and sending commands to actuators. The availability of these actions is protected.
engineering workstation flows	The flows between the PAC and the engineering workstation are protected in integrity, confidentiality, and authenticity.

Security requirements for the environmental critical assets:

Asset	Availability	Confidentiality	Integrity	Authenticity
control-command of the industrial process	X
engineering workstation flows		X	X	X

PAC: This table shows the assets that are critical to the PACs:

Asset	Description for Proper Use
firmware	The firmware is protected both in integrity and authenticity.
PAC memory	The PAC memory contains the PAC configuration and a program that is loaded by the user. Its integrity and authenticity are protected while it is running.
execution mode	The integrity and authenticity of the execution mode of the PAC are protected.
user secrets	All passwords that are used to perform authentication are held in the confidence by the appropriate users.

Security requirements for the PAC critical assets:

Asset	Confidentiality	Integrity	Authenticity
firmware		X	X
PAC memory		X	X
execution mode		X	X
user secrets	X	X

Security Threats

Threats considered by attackers controlling a device plugged into the supervision network:

	Control-Command of the Industrial Process	Engineering Workstation Flows	PAC Memory	Execution Mode	User Secrets
denial of service	Av
firmware alteration		I, Au
execution mode alteration				, AuI
memory program alteration			I, Au
flows alteration	Av	Au, C, I			C, I
Av: availability I: integrity C: confidentiality Au: authenticity

Type of Threat	Description
denial of service	The attacker manages to generate a denial of service on the PAC by performing an unexpected action or by exploring a vulnerability (sending a malformed request, using a corrupted configuration file...). This denial of service affect the entire PAC or only some of its functions.
firmware alteration	The attacker manages to inject and run a corrupted firmware on the PAC. The code injection may be temporary or permanent, and does not include any unexpected or unauthorized code execution. A user may attempt to install that update on the PAC by legitimate means. Finally, the attacker manages to modify the version of the firmware installed on the PAC without having the privilege to do so.
execution mode alteration	The attacker manages to modify the execution mode of the PAC without being authorized (a stop command for instance).
memory alteration	The attacker manages to modify, temporarily or permanently, the user program or configuration that run in the PAC memory.
flows alteration	The attacker manages to corrupt exchanges between the PAC and an external component without being detected. He can perform attacks such as credential theft, access control violation, or control-command of the industrial process mitigation.

	Persistent Denial of Service	Firmware Alteration	Execution Mode Alteration	Memory Alteration	Flows Alteration
malformed input management	X
storage of secrets				X
athentication on administrative interface					X
access control policy					X
firmware signature		X
integrity and authenticity of PAC memory				X
integrity of the PAC execution mode			X
more secure communication					X

Type of Threat	Description
malformed input management	The PAC has been developed to correctly handle malformed input, particularly malformed network traffic.
strength of secrets	The PAC has been developed to correctly handle malformed input, particularly malformed network traffic. the PSK used to mount the IPsec tunnel the application password used to read the .STU Control Expert file and connect the file to the PAC other services passwords (like FTP)
authentication on administrative interface	Session tokens are protected against hijack and replay; they have a short lifespan. The identity and permissions of the user account are systematically checked before any privileged action.An application password is set in each configuration, which helps prevent any modification of the PAC from a non-authentic user.
access control policy	The access control policy helps guarantee the authenticity of privileged operations, i.e., operations that can alter identified critical assets.The access control list (ACL) is activated in each configuration, and only identified IP addresses can connect to the PAC.
firmware signature	At each firmware update, integrity and authenticity of the new firmware are checked before updating.
integrity and authenticity of PAC memory	The memory protection feature is activated in each configuration, which helps prevent the modification of the running program without an action in specific inputs or outputs. If no input/output module is installed, the programming interface is blocked.The PAC helps ensure the integrity and authenticity of the user program, so that only authorized users can modify the program. The memory protection also helps ensure the configuration protection, which includes several security parameters: Access control policy. RUN/STOP by input only activated. Memory protection activated. Enabled/disabled services (FTP, TFTP, HTTP, DHCP, SNMP, EIP, NTP). IPsec parameters. Syslog parameters.
integrity of the PAC execution mode	The PAC helps ensure that the execution mode can only be modified by authorized users that are authenticated.The RUN/STOP by input only feature is activated, which helps prevent the possibility of changing the RUN/STOP status through the Ethernet interface.
encrypted communication	The PAC supports encrypted communication, protected in integrity, confidentiality, and authenticity (IPsec encrypted with ESP).The FTP protocol is disabled, and IPsec helps secure Modbus communication through the BMENOC0301/0311 module.
