Output Limiter

Description

This function is exclusive to the scale output function.

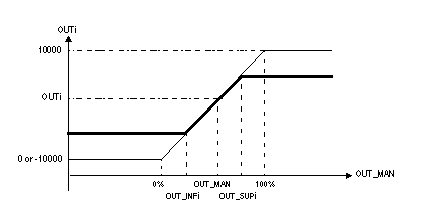

When this function is selected, it enables the scaling of output between the limits of the range defined by the parameters OUT_INFi and OUT_SUPi. In this case, the output scale is between 0% and 100%.

If this function is not activated, the value of the output is limited to the scale of the output defined by OUT_INFi and OUT_SUPi.

The limiter is selected by default with the values for the low limit of 0% and for the high limit of 100%.

Function Parameters

Input Parameters:

Parameter	Symbol	Type	Thresholds	Default Value	R/W
Command Value	OUT_MAN	REAL	-3.4E38 / 3.4E38	/	R
Command value (*)	OUTi	REAL	-3.4E38 / 3.4E38	/	R

(*) Hot/Cold or Split Range case

Internal Parameters:

Parameter	Symbol	Type	Thresholds	Default Value	R/W
Lower Scale	OUT_INFi	REAL	-3.4E38 / 3.4E38	0.0	R/W
Upper Scale	OUT_SUPi	REAL	-3.4E38 / 3.4E38	100.0	R/W

NOTE: In the Configuration Editor, symbols OUT_INF and OUT_SUP are called Low limit (%) and High limit (%), with:

-5% < OUT_INFi < 105% and -5% < OUT_SUPi < 105%.

Output Parameter:

Parameter	Symbol	Type	Thresholds	Default Value	R/W
Command value	OUT_MAN	REAL	-3.4E38 / 3.4E38	/	R

Execution Monitoring

Monitoring of this function's parameters is built into the error management of the output branch.
