The setpoint programmer has 8 STOR0 to STOR7 logic bit outputs (%MWxy.i.3:X0 to X7), which can be associated to the segments in order to generate discrete actions.
These outputs are called S0 to S7 on the Control Expert Configuration Screen.
Sample Configuration Screen
This illustration shows a sample configuration for logic outputs associated with segments from a setpoint programmer.

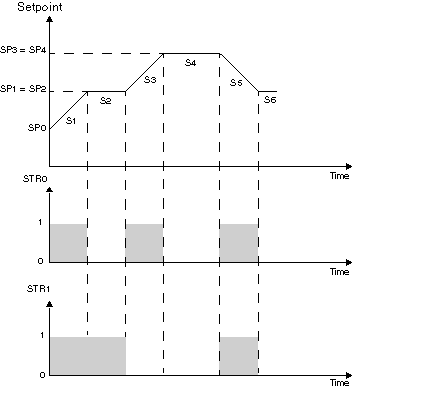

This timing diagram describes the position of the outputs in relation to the current segment.
