Runtime Screen Configuration Tools
(Original Document)
At a Glance
The runtime screens editor allows the use of bar charts and specific library objects for the operation of control loops. The block animation process is automatic and very straightforward.

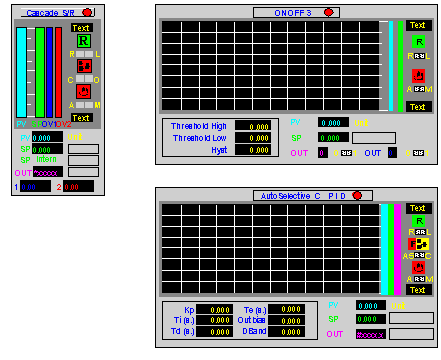

Sample Configuration Tool
This example shows the process control interfaces accessible through the runtime screens editor.
