Overview

To replace variables assigned to elementary functions (EF) or to function blocks (EFB, DFB) in FBD/LD sections use the Replace Variables dialog box.

To find and replace variables connected to functions and/or function blocks you can use placeholders.

NOTE:

  • Structure elements of multi-element variables (DDTs) cannot be replaced.

  • If the original variable does not exist, the replacement variable is not possible.

Dialog Box

You have the following options to display the Replace Variables dialog box:

  • Select the Edit > Replace Variables menu command.

  • Select the Replace Variables command in the context menu (right-click on one or more EF/EFBs in the section).

Dialog box for replacing functions/function blocks using placeholders

Find and Replace Pattern

The find and replace patterns are applied to all variables connected to the selected functions/function blocks.

The following placeholders can be used:

  • * to search/replace any string

  • ? to search/replace any character

Rules for find and replace patterns see below.

Replace Variables

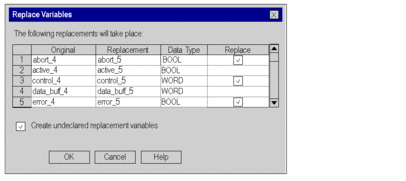

All variables matching Find Pattern will be listed in a dialog box:

Elements of the dialog box

Element

Description

Original

displays the names of the found variables

The entries in this column are not editable.

Replacement

displays the strings that will replace the names of the found variables

The entries in this column are editable.

Data Type

displays the type of the original variable (not that on of the replacement variable, which could already exist and be of another type)

The entries in this column are not editable.

Replace

provides the option to enable/disable the variable replacement via a check box

By default Replace is enabled for all rows.

The entries in this column are editable.

Create undeclared replacement variables

If this check box is selected, the replacement variables will be created in the Data Editor automatically.

If such a replacement variable already exists in the Data Editor, the creation will be skipped.

Note: If the replacement variable already exists, but has another type than the original one, since creation is skipped the replacement variable may or may not match the type of the connected pin afterwards.

Note: If the check box is not selected, no variable creation will take place (some of the replacement variables may be undeclared afterwards).

Undo/Redo

Replace Variables supports Undo/Redo, which means that the original state will be recreated on Undo (of course without deleting the newly created replacement variables from Data Editor) and the state after replacement on Redo.

Online Mode

Replace Variables is supported in online mode.

Rules for Find and Replace Patterns

Rules for find and replace patterns:

  • ? can be used many times in pattern

  • * can be used at maximum 2 times in pattern

  • * can be first and last character in pattern only

  • no * only and no ** can be used

  • no ?* and no *? can be used (always another letter between them)

  • numbers of * and ? in both (find and replace) pattern must be equal

  • if two * and at least one ? are used the find and replace pattern must be structural identical (same length, same order of normal letters and placeholders)

Examples

Examples of simple replacements

Find Pattern:

Found Variable

Replace With:

Variable is Replaced With

abc123jmk

abc123jmk

abc223jmk

abc223jmk

abc123jmk

abc123jmk

abc124123jmk

abc124123jmk

Examples for replacements with constant characters

Find Pattern:

Found Variable

Replace With:

Variable is Replaced With

ab?1????k

abc123jmk

ab?2????k

abc223jmk

abc???12??mk

abc124123jmk

abc???022?4?mk

abc12402234jmk

Examples for replacements with constant series of characters

Find Pattern:

Found Variable

Replace With:

Variable is Replaced With

*123jmk

abc123jmk

*223jmk

abc223jmk

*123*

abc123jmk

*223*

abc223jmk

*123*

abc123jmk

*2234*

abc2234jmk

Examples of complex replacements

Find Pattern:

Found Variable

Replace With:

Variable is Replaced With

abc???12??m*

abc124123jmk

abc???022?4?m*

abc12402234jmk

*1???mk

abc123jmk

*2???mk

abc223jmk

*2??jmk

abc223jmk

*1240?2?4jmk

abc12402234jmk

*1?3*

abc123jmk

*2?3*

abc223jmk

Examples of array replacements

Find Pattern:

Found Variable

Replace With:

Variable is Replaced With

array[5*

array[5]

array[6*

array[6]

array5[5*

array5[5]

array5[6*

array5[6]

*5*

array5[5]

*6*

array6[5]

array5[i*

array5[i5]

array5[i6*

array5[i65]

*5*

array5[i5]

*6*

array6[i6]

Not Possible

The following complex replacements are not possible

Entry in text field search pattern

Found variable

Entry in text field Replace With

*1?3*

abc123jmk

*2?34*

*1?3*

abc123jmk

*02?34*

*1241?3*

abc124123jmk

*12402?34*

*12?1?3*

abc124123jmk

*12?02?34*
