Call the dialog box:

see Open the dialog

Call the dialog box

The Go todialog box is made up of three tabs:

  • Location

    Go to a certain position in the current section using this tab:

  • Bookmarks

    Go to a certain bookmark in the current section using this tab:

  • Label

    Go to a certain location in the current section using this tab:

Position tab

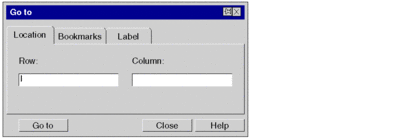

Representation of the tab Position :

Elements of the Position tab

Element

Description

For symbols that are not printed, the dialog box is closed after every search.

For printed symbols the dialog box remains open until you close it.

Row

The number of the row to be displayed can be entered in this text box.

Column

The number of the column to be displayed can be entered in this text box.

Go to

Display the current position using the button desired position.

Close

Use this button to close the dialog.

Help

Use this button to call up the dialog help.

Register tab Bookmarks

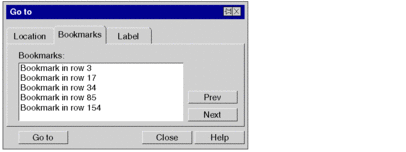

Representation of theBookmark tab:

Elements of the tab Bookmark :

Element

Description

For symbols that are not printed, the dialog box is closed after every search.

For printed symbols the dialog box remains open until you close it.

Bookmark:

Select the bookmark to be displayed from this list box.

Prev

If a current bookmark is selected, a jump is made to the previous one and the last one is marked as the current bookmark.

If no current bookmark is selected, the margin is search from the bottom to the top for the next bookmark, which is marked as the current bookmark.

When the start of the section is reached, the search starts again from the bottom.

Next

If a current bookmark is selected, a jump is made to the previous one and the last one is marked as the next bookmark.

If no current bookmark is selected, the margin is search from top to bottom for the next bookmark, which is marked as the current bookmark.

When the end of the section is reached, the search starts again from the top.

Go to

Display the current position using the button desired bookmark.

Close

Use this button to close the dialog.

Help

Use this button to call up the dialog help.

Register tab Location

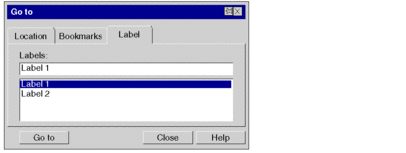

Representation of the tab Label :

Elements of the tab Bookmark :

Element

Description

For symbols that are not printed, the dialog box is closed after every search.

For printed symbols the dialog box remains open until you close it.

Locations:

Select the location to be displayed from this text box.

You can enter the name of the location in the text box with the keyboard or using the drop-down list by clicking with the mouse.

Go to

Display the current position using the button desired location.

Close

Use this button to close the dialog.

Help

Use this button to call up the dialog help.
