Calling the properties dialog box

see Displaying the properties

Structure of the properties dialog box

The properties dialog box consists of two tabs:

  • FFB Properties

    General information regarding functions/procedures is displayed in this register.

  • Comment

    You can enter a comment about the functions/procedures/sub-routine blocks in this tab.

FFB Properties tab

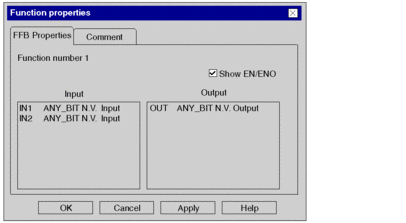

Representation of the FFB Properties tab:

Elements of the FFB Properties tab:

Element

Description

Function

Specifies the name of the function number and the current execution order. This name cannot be modified.

Show EN/ENO

When you activate this checkbox the pins EN/ENO are displayed.

When you uncheck this checkbox the pins EN/ENO are no longer displayed.

Note: If EN or ENO is occupied by an actual parameter or connected with a link, the pins EN/ENO cannot be hidden.

Input

Displays the formal parameters, the data types and the actual parameter of the inputs.

If the input is not yet linked, the entry N.L. appears .

Output

Displays the formal parameters, the data types and the actual parameter of the outputs.

If the output is not yet linked, the entry N.L. appears .

OK

Use this button to accept all entries and close the dialog box.

Apply

Use this button to accept all entries without closing the properties dialog box.

Comment tab

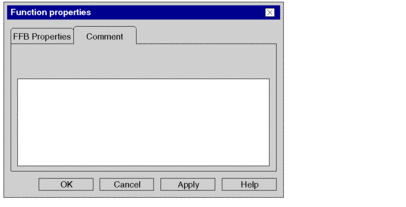

Representation of the tab Comment :

Elements of the Comment tab:

Element

Description

Text box

Enter a comment about the FFB.

This comment is displayed in the tooltip when the cursor is placed over the function/procedure.

OK

Use this button to accept all entries and close the dialog box.

Apply

Use this button to accept all entries without closing the properties dialog box.
