Introduction
The user-defined library can be saved in a file. It can then be imported into another programming device.
Procedure
Step |
Action |
|---|---|
1 |
In the Tools menu, select the Type Library Manager option. |
2 |
In the Name area, display the contents of the Libset directory. |
3 |
Select a family in the User-defined Library or a self-created library. |
4 |

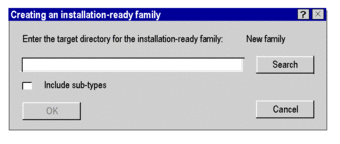

Select the Create Install-Ready Familycommand from the shortcut menu. Result: The following window will be displayed.  Note: Enable the checkbox when the family contains sub-types that are not defined in the new project. |
5 |
Select the directory where the family is to be stored (installed). Use Search to select the directory. |
6 |
Click OK. |
Notes for EF/EFBs
NOTE: When you try to create an installable family from a family
that contains EF/EFBs, a warning will be displayed that the EF/EFBs
will not be exported. For more information about using families with
EF/EFBs in other Control Expert installations,
refer to Updating a family of a library.
