Principle

The hyperlink functionality is also used to make links to documents for printing in the documentation folder of a Control Expert project. For example, they can be used to present the architecture of a project.

You can in this way create a hyperlink from General Information sections of the documentation folder. These are image documents (.bmp) and you can print them in the General Information section of the documentation folder.

Procedure

The table below describes the procedure for creating a hyperlink in the documentation folder with a 2-step mode.

Step

Action

1

Use the project browser to select the General Information sub-directory of the Documentation directory.

2

Select Open in the contextual menu.

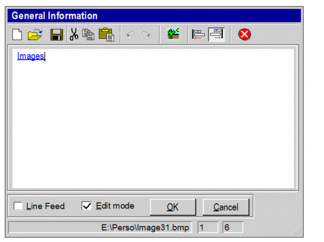

Result: The General Information window appears.

Details of window

3

Enter a comment in the entry field.

4

Select one or more words (contiguous) from the comment you have entered and click on the icon .

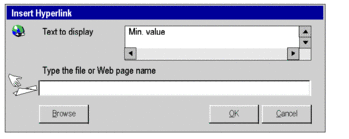

Result: The Insert Hyperlink window is displayed.

Note: You can create several hyperlinks in this way by selecting different words.

5

The text selected in step 4 appears in the Text to display field.

In the Type the filename or web page name field, use the button to choose the disk and/or the directory to select the target document (example: C:\Images\structure1.bmp).

6

Click OK to confirm your choice.
