Assignment of Modbus ports
The Modbus port configuration screen can be used to select the Modbus communication parameters for 3 ports: ports No. 1, 2 and 3.
Port No. 1 is assigned:
to the built-in Modbus port for 140 CPU 6•• processors
to the first built-in Modbus port (MODBUS COMM1) for other Quantum processors
Port No. 2 is assigned:
either to the second built-in port (MODBUS COMM2), for processors with 2 built-in ports
or to one or several NOM modules.
Port No. 3 is assigned: to one or several NOM modules
Rule for assignment of ports 2 and 3 to NOM modules:
Starting with the lowest slot numbers:
the first NOM module will be assigned to port 2,
the second will be assigned to port 3,
the third will be assigned to port 2,
the fourth will be assigned to port 3,
the fifth will be assigned to port 2,
the sixth will be assigned to port 3.
Note: It is possible to change the assignment order of 2 of them by entering
their slot number in the Head Slot column (see table below).
Important:
The port parameters are only taken into account if the switches on the front panels of Quantum 140 CPU 3••/4••/5•• processors (used with first built-in port MODBUS COMM1) and of NOM modules are in the Mem position.
Access to the configuration editor
Carry out the following actions:
Step |
Action |
---|---|
1 |
Select the processor and then select the Open module command from the popup menu. |
2 |

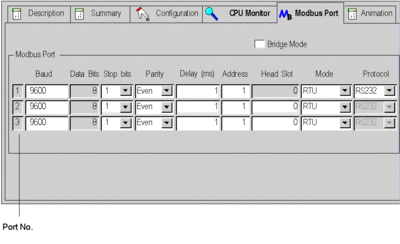

Select the Modbus Port tab. Result: The following screen appears: ![]() |
Presentation of configuration parameters
Carry out the following actions:
Step |
Action |
---|---|
1 |
Choose the operating mode: Bridge Mode checkbox |
2 |
Choose the transmission speed:
![]() |
3 |
Choose the number of Stop bits:
![]() |
4 |
Choose the parity:
![]() |
5 |
Choose the Delay which corresponds to the minimum time tolerated between two frames, also called delay between frames. |
6 |
Choose the Modbus port slave address. |
7 |
By default, if the Head Slot fields are left set to 0, the NOM modules observe the normal assignment rule described above. Entering the slot number of a NOM module assigns it to the corresponding port (the assignment rule is no longer applied for this module but continues to apply to other modules). |
8 |
Choose the communication mode:
![]() |
9 |
Choose the communication protocol:
![]() |
